| Reactivity: | Human, Mouse, Rat |
| Applications: | WB, IC |
| Host Species: | Rabbit |
| Isotype: | IgG |
| Clonality: | Monoclonal antibody |
| Gene Name: | activin A receptor like type 1 |
| Gene Symbol: | ACVRL1 |
| Synonyms: | HHT; ALK1; HHT2; ORW2; SKR3; ALK-1; TSR-I; ACVRLK1 |
| Gene ID: | 94 |
| UniProt ID: | P37023 |
| Clone ID: | 25GB2975 |
| Immunogen: | A synthesized peptide derived from human ACVRL1 |
| Dilution: | WB 1:4,000-1:20,000; IC 1:100-1:1,000 |
| Purification Method: | Affinity purified |
| Concentration: | Lot dependent |
| Buffer: | PBS with 0.01% thimerosal, 50% glycerol, pH7.3. |
| Storage: | Store at -20°C. Avoid freeze/thaw cycles. |
Background
The gene ACVRL1 encodes a type I cell-surface receptor for the TGF-beta superfamily of ligands. It shares with other type I receptors a high degree of similarity in serine-threonine kinase subdomains, a glycine- and serine-rich region (called the GS domain) preceding the kinase domain, and a short C-terminal tail. The encoded protein, sometimes termed ALK1, shares similar domain structures with other closely related ALK or activin receptor-like kinase proteins that form a subfamily of receptor serine/threonine kinases. Mutations in this gene are associated with hemorrhagic telangiectasia type 2, also known as Rendu-Osler-Weber syndrome 2.
Images

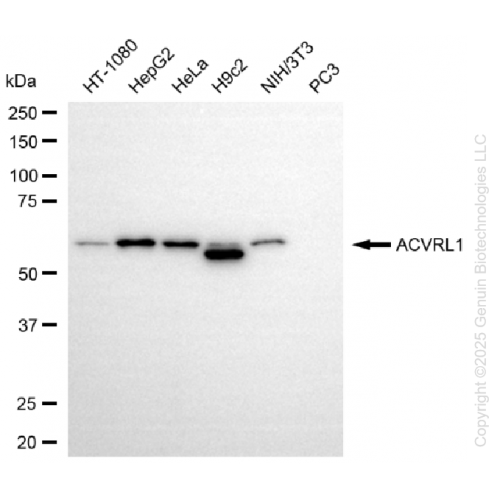

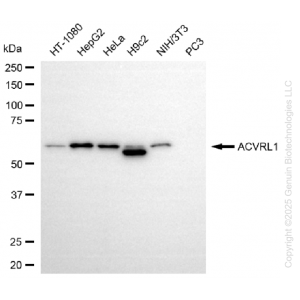

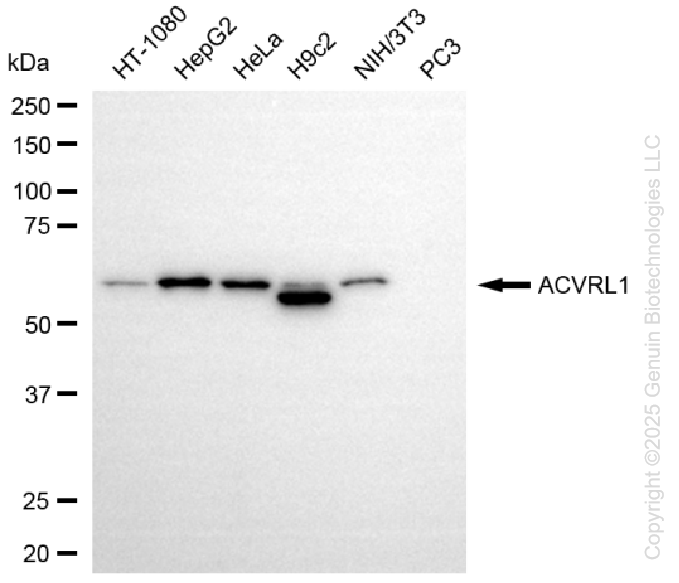

 | Western blotting analysis using anti-ACVRL1 antibody (Cat#61595). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with anti-ACVRL1 antibody (Cat#61595, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (Cat#201, 1:20,000) respectively. Image was developed using NaQ™ ECL Substrate Kit (Cat#716). |

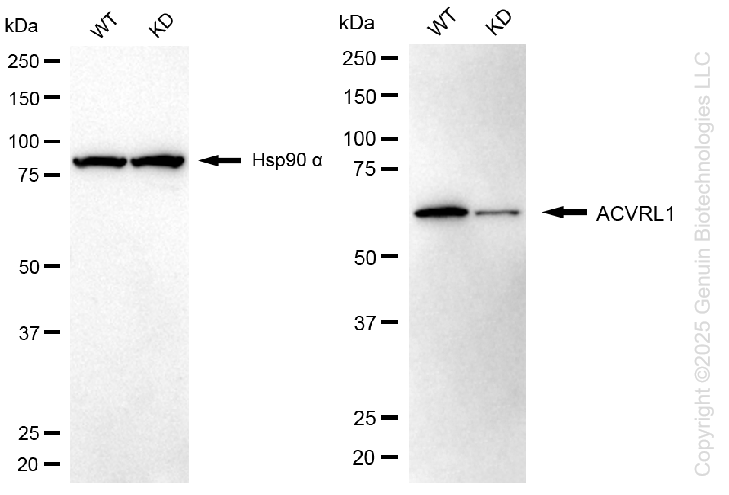

 | Western blotting analysis using anti-ACVRL1 antibody (Cat#61595). ACVRL1 expression in wild type (WT) and ACVRL1 knockdown (KD) HSHC cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with anti-ACVRL1 antibody (Cat#61595, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (Cat#201, 1:20,000) respectively. Image was developed using FeQ™ ECL Substrate Kit (Cat#226). |

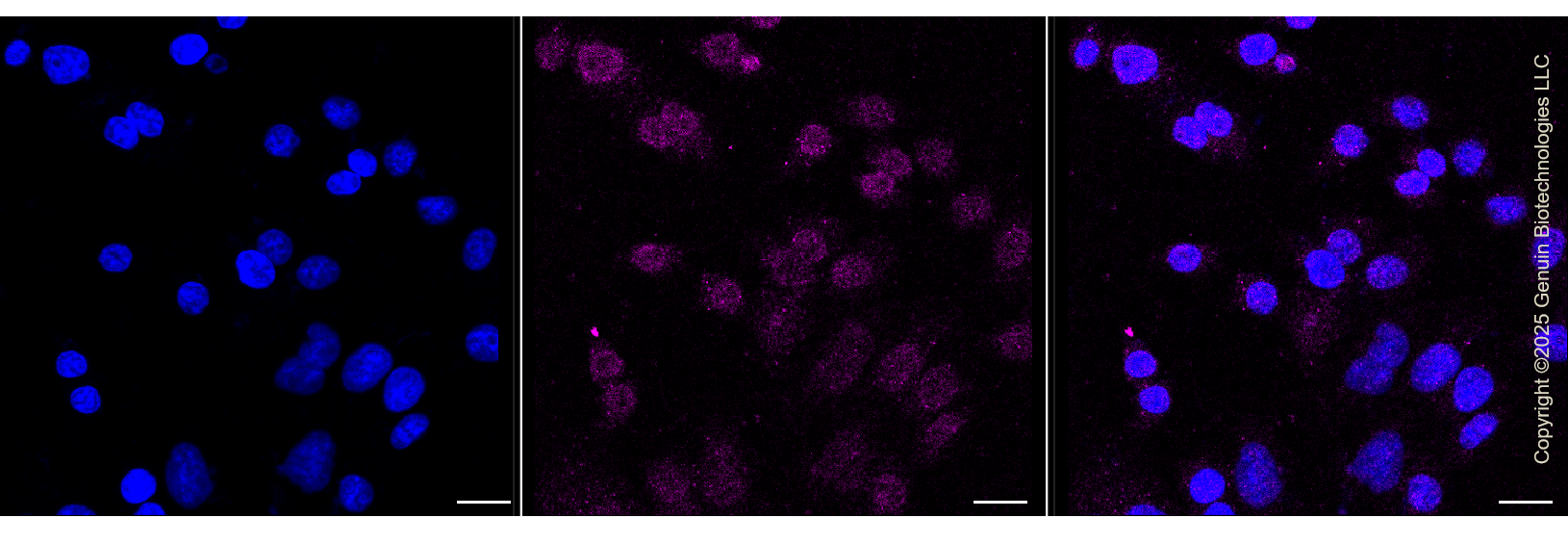

 | Immunocytochemical staining of HepG2 cells with anti-ACVRL1 antibody (Cat#61595, 1:1,000). Nuclei were stained blue with DAPI; ACVRL1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Low. Scale bar, 20 μm. |
