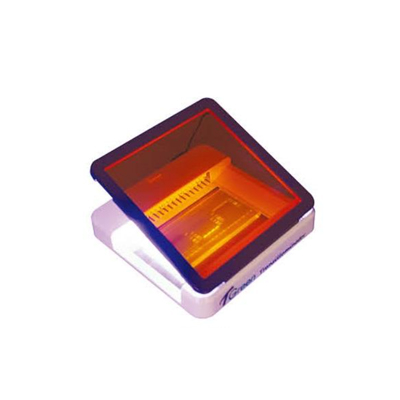

| Description: | TGreen Transilluminator adopts LED blue light source, amber filter and 470-520 nm excitation light material, which can be used for observation and cutting of gels loaded with GFP protein, or nucleic acid stained with a variety of safety dyes/ EB. The TGreen Transilluminator can achieve perfect gel observation and cutting effect with no ultraviolet radiation, and provide a safe and humanized laboratory environment. This instrument can also be applied to other fluorescence observation with excitation wavelengths of 470-520 nm, such as proteins, small animals and plants with GFP tag. |
| Features: | 1. High sensitivity: When used with GeneGreen, as low as 0.5 ng (1000 bp) dsDNA can be observed. 2. Safe: Blue light source has no damage to human body, gel and sample. 3. Wide application range: Compatible fluorescent dyes include GeneGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, EB etc. 4. Long service life: The service life of LED lamps is 50,000 hours. 5. Humanization: Multi-angle rotation of filter facilitates gel cutting. |
| Specifications: | 1. Dimension (mm): 210 L x 210 W x 30 H 2. Viewing surface: 120 x 70 (mm) 3. Wavelength: 470 (nm) 4. Amber filter: the amber filter is wrapped in a metal frame 5. LED arrangement: the matrix provides double-sided lighting 6. LED lifetime: 50000 (h) 7. Power: 24V DC, 2.5 A power adapter 8. Maximum adapted gel size: 110 x 60 (mm). 9. Weight: 2.3 (kg) |
| Component: | 1. TGreen Transilluminator: 1 set |
| Documents: | Manual |
