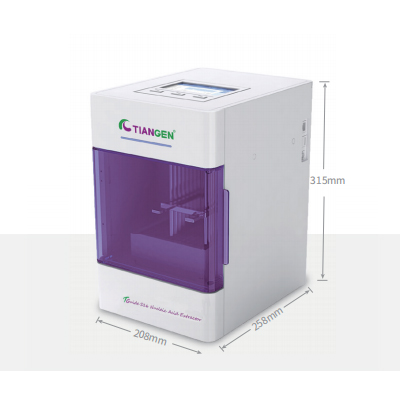

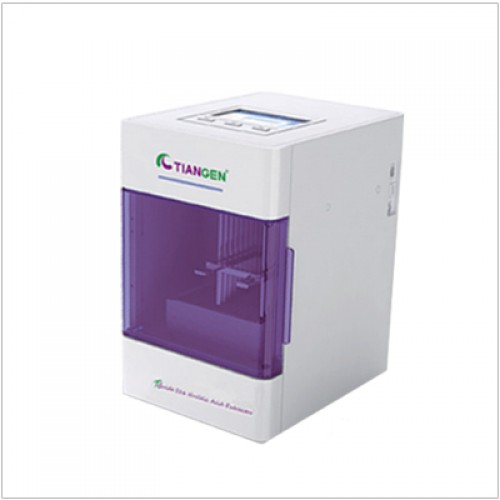

TGuide S16 Nucleic Acid Extractor

TGuide S16 Nucleic Acid Extractor

Brand: TIANGEN
Cat. #: OSE-S16
Availability: In Stock
$13,500.00
-+
Key Features:

• Time saving and highly efficient: It can greatly reduce the hands-on operation of nucleic acid experiments, and largely improve the laboratory work efficiency.

• Tailored for research use: Although compact in size, it provides automated solutions for most sample types of scientists' interests.

• Out-of-the-box automation: It is super easy to use, with prefilled supporting reagent cartridges and preinstalled programs. Overall, the instrument requires little effort on installation, training and maintenance.

• Competent and reliable: The upgraded techniques assure you the reproducible extraction of ultrapure DNA/RNA.

Description:  TGuide S16 Nucleic Acid Extractor can process up to 16 samples simultaneously by the magnetic rods to bind and transfer the magnetic beads, the 96-well plate or single-sample reagent cartridge and magnetic tip comb. By using the corresponding nucleic acid extraction reagent, this product can automatically purify DNA/RNA from various samples of animal, plant, bacteria, fungi, etc., and extract DNA from plasmid, agarose gel and PCR product.
Specialty:  Easy-to-use Benchtop Instrument, 1-8 Or 16 Samples At The Same Time

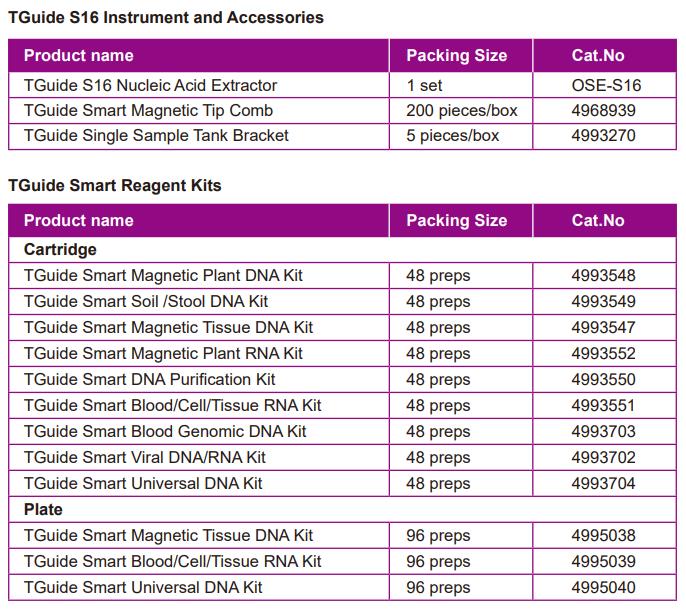

Component:
1. TGuide S16 Nucleic Acid Extractor: 1 set
Documents:
Manual

Super easy to use

No extra pipetting work. The elution volume can be adjusted as required.

The installation and operation require little training. With pre-installed programs, unpack the cartridge, select the protocol and run your experiment. Programs are ready-to-use, and also customizable.

New binding mode

The magnetic rod adopts the strong end binding mode.

The magnetic beads bind at the rod bottom, which ensures that the eluent can still cover all magnetic beads even when the eluent volume is small. The design maximizes the yield of nucleic acid.

Optimal design of heating tank

There is a column inserted between the lysis buffer and the eluent column, which effectively prevents the eluent from evaporating due to the lysis column heating. Therefore, the recovery volume of the nucleic acid solution is more accurate.

Contamination control and operator protection

It can be placed on a clean bench or in the chemical hood.

The instrument is running in an automatic and closed way.

The contamination control system adopts two mechanisms: the internal cross-contamination control system and ultraviolet sterilization system, to extensively avoid cross-contamination between columns and samples.

Preloaded reagents and matched disposable consumables.

The chemical handling is eliminated to the greatest extent to ensure the operation safety.
